Polyurethane Insulation Spray And Injection High Pressure Closed Cell Wall And Roof Insulation Polyurethane Spray Foam Machine

1 set
MOQ
$3,100.00(1 - 2 sets) $3,000.00(3 - 99 sets) $1,500.00(>=100 sets)
Price
Polyurethane Insulation Spray And Injection High Pressure Closed Cell Wall And Roof Insulation Polyurethane Spray Foam Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Processing Type: Foaming Machine
Product Type: Foaming Machine
Machine Type: Pu Spray Foam Machine
Voltage: 110V/220V/380V
Dimension(L*W*H): 97 *78*160cm
Power (kW): 7.5
Weight (KG): 230 KG
Warranty: 3 Years
Key Selling Points: Energy Saving
Showroom Location: Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangl
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 3 Years
Core Components: Pump, PLC, Pressure Vessel
Driven Mode: Pneumatic Driven
Maximum Working Pressure: 17MPa
Raw Output: 2-12kg/min
Heating Power: 7.5KW
A And B Chemical Output Ratio: 1:1
Max Hose Support: 90 Meters
Application: Polyurethane Insulation Spray And Injection
Certification: CE/ISO
After Warranty: Video Technical Support, Online Support, Spare Parts
Product Name: Pneumatic Polyurethane Spray Foam Machine
Basic Infomation
Certification: CE/ISO
Payment & Shipping Terms
Packaging Details: Wooden case
Supply Ability: 500 Set/Sets per Month
Product Description
Product Overview

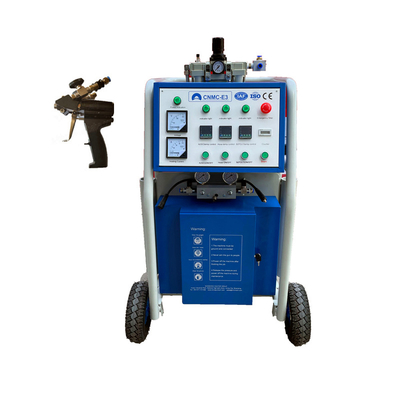

CNMC-E3 polyurethane spray foam machine

1. The machine has added a voltmeter and ammeter, which can monitor the voltage and current inside the machine in real time. 2. The machine is upgraded with a large power cylinder, the spraying effect is stronger, and the atomization effect is better 3. The machine is equipped with a leakage protector to prevent leakage of the machine, damage to electrical components and human electric shock, and improve safety performance 4. The machine optimizes the circuit layout, reduces fault points, and makes it easier to troubleshoot 5. The appearance design of the machine is more beautiful and atmospheric, conforms to the principle of artificial mechanics, and it is easy to move and operate, and handrails are added. 6. The machine is equipped with a quick-opening door, which is more convenient for maintenance.
Product Photo
Extensive use
Widely used in industrial maintenance,tunnels,subways,roadbed waterproofing,foam film and television props production,Pipe anticorrosion,roof wareproof,basement waterproof,wear-resistant lining,external wall insulation,ec.
PRODUCT SPECIFICATIONS
Model
CNMC-E3 Pu Spray Foam Machine
Power source
110V/220V380V
Heating power
7.5 KW
Driven mode
Pneumatic
Raw output
2-12 kg/min
Maximum working pressure
17 MPa
A and B chemical output ratio
1:1
Max hose support
 90 meters
Complete set list:
Main machine
1 set
Spray gun
1 set
Feeding pump
2 sets
Heated hose
15meters
Spare parts tool box
1 set
Operation manual and video
1 copy
