High Pressure Automatic PU Products PU Polyurethane Foam Injection Molding Machine Price

1.0 Sets
MOQ
$37,000.00(1 - 2 Sets) $35,000.00(>=3 Sets)
Price
High Pressure Automatic PU Products PU Polyurethane Foam Injection Molding Machine Price
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Processing Type: Foaming Machine
Machine Type: PU Panel Making Machine
Voltage: 380V/50HZ
Dimension(L*W*H): L3600 X W2000 X H2900mm
Power (kW): 40KW
Weight (KG): 2000 KG
Warranty: 1 Year
Key Selling Points: Automatic
Showroom Location: None
Applicable Industries: Building Material Shops, Manufacturing Plant
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor
Processing Type:: Foaming Machine
Raw Material:: Isocyanate And Polyol(ISO And POLY)
Application:: PU Products
Machine Type:: High Pressure
Output:: 10-5000g/s
Key Selling Points:: : Multifunctional
Mixing Ratio Range:: 100:28~48~100
Item: Polyurethane Foam Injection Machine Used For PU Foam Sandwich Panels
Basic Infomation
Payment & Shipping Terms
Packaging Details: Export standard packing /20GP container
Supply Ability: 100 Set/Sets per Year
Product Description
Product Description

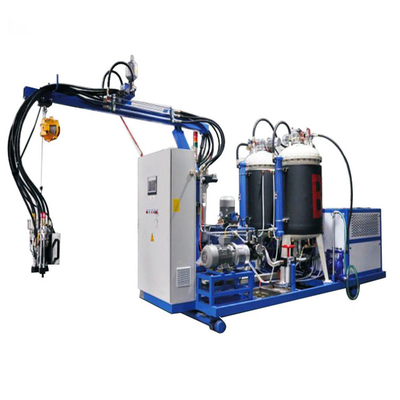

High Pressure Polyurethane foam Injection Machine.
Technical Parameter:
Injection output: 2-6000g/s
Material tank volume: 30L-500L
Mixing ratio range: 100:30-200
Mixing head: 2800-5000rpm, forced dynamic mixing
Compressed air needed: dry, oil free, P:0.6-0.8MPa Q:600NL/min(customer-owned)
Nitrogen requirement: P:0.05MPa Q:600NL/min(customer-owned)
Temperature control system: heat:2×3KW
Input power: three-phase five-wire 380V 50HZ Other power customizable
Rated power:8KW-25KW
Color( customizable): White/Red/Blue
Weight: 1000Kg-1500Kg
Dimension: 3200(L)*1650(W)*2650(H)mm

Equipment Overview:
PU foaming machines have wide application in the market, which have features of economy and convenient operation and
maintenance,etc. The machines can be customized according to customers' requirement for various output and mixing ratio.

Application Cases :
Pillow, chair, seat cushion,wheel, crown molding, wall panel, steering wheel, bumper, integral skin, fast rebound, slow rebound, toys, knee pad, shoulder pad, fitness equipment, thermal insulation material filling, bicycle cushion, car cushion, hard foaming, refrigerator material, medical appliance, sole etc.
Good sound insulation
The porosity of the polyurethane material is stable and basically closed-cell structure, which not only has excellent heat preservation performance, but also has resistance to freezing and thawing and sound absorption.
Good waterproof performance
Polyurethane cold storage board with moisture and water resistance. The rigid polyurethane has a closed cell ratio of more than 90% and is a hydrophobic material. It does not increase the thermal conductivity due to moisture absorption, and the wall surface will also seep.
Strong resistance to deformation
Strong resistance to deformation, not easy to crack, stable and safe finish.
Product packaging
Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.

Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like
to have seamless cooperation with your forwarder at your convenience.
